Description

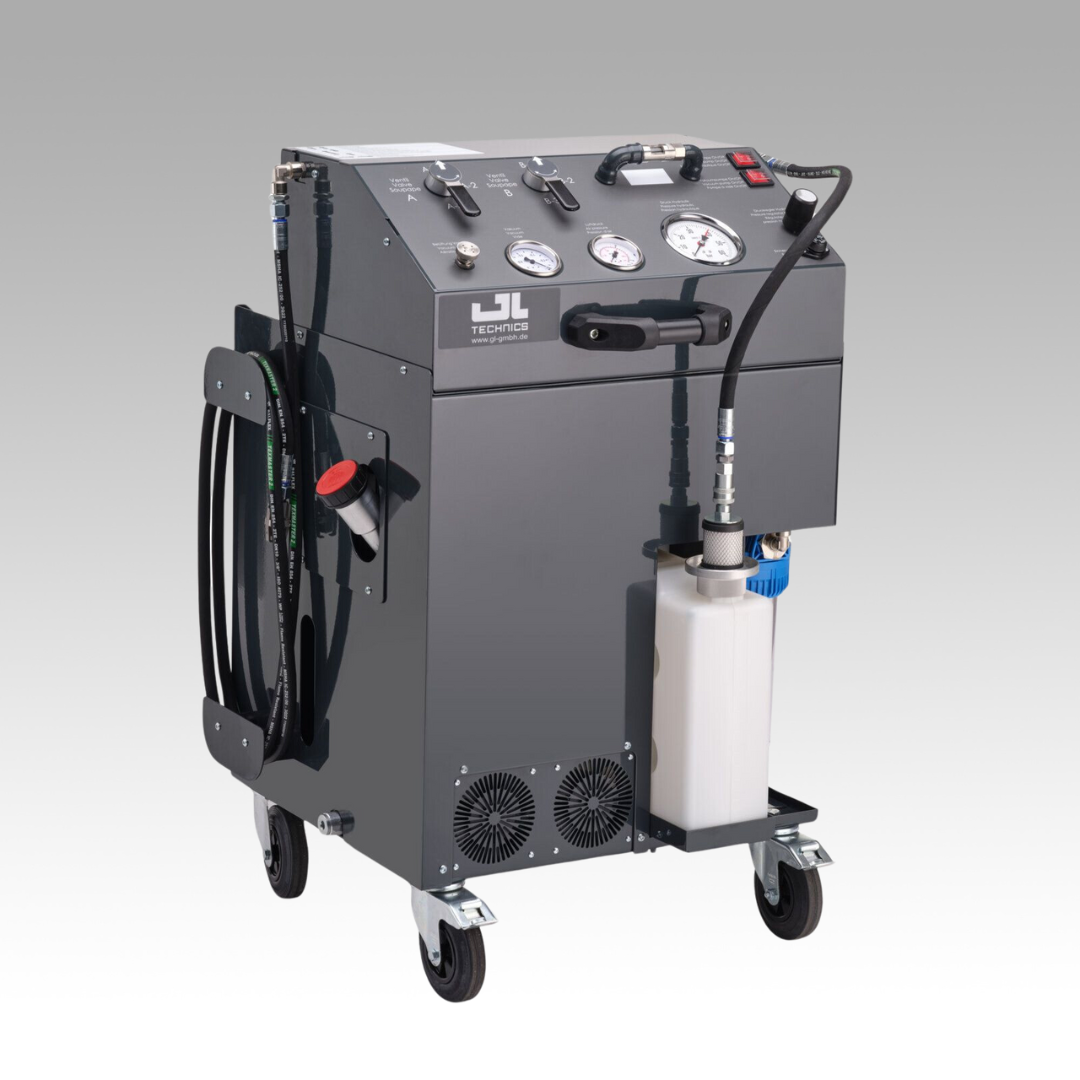

Evacuation & Filling Device for Shock Absorbers – Rivian Approved!
The EBS-100R is the only device of its kind. It can be used to perform service on the most advanced suspension systems. The ability to flexibly adjust the pressure is particularly suitable for flushing the kinetic suspensions of all current and future vehicles.
Due to the simple operation and the robust construction made of steel, it is well equipped to withstand the tough daily workshop routine.
High-quality handles, smooth-running heavy-duty rollers with a large radius and an impact-resistant powder coating make the EBS-100R long lasting.
Functions
- Independent venting of the internal device pipelines
- Inspection through integrated sight glass
- Bubble free filling of hydraulic systems with adjustable pressure between 4 and 30 bar
- Bringing hydraulic systems to ambient pressure in a controlled manner through drain hose with ball valve
- Connection to waste oil tank via oil drain hose
- Blowing out hydraulic systems with compressed air
- Disposal of used oil in canister
- Generation of vacuum up to an absolute pressure of 0.002 bar
Technical Data
Volume of Oil Container 10 L
Max. Working Pressure 30 bar
Power Cord Length 3,000 mm
Mains Voltage 110 V
